VRML Structure Type gallery

created by © S.Weber, 2001

Inspired by the two websites on structure types  ( http://132.230.13.25/Vorlesung/Strukturtypen/alle.html and http://cst-www.nrl.navy.mil/lattice/index.html  ) I decided to create my own gallery of crystal structure types.  The  GIF and JPG images below are linked to VRML2.0 files. Clicking at them will open another window, where your VRML browser plug-in can display the structure. If your VRML browser does not display VRML2 files then you might have to use an external viewer, such as the very good program GLview. If you want to download the VRML files just click at the links using the right mouse button and choose "save link/target as..".

    elements  AB  AB2  AB3  others

3. AB2

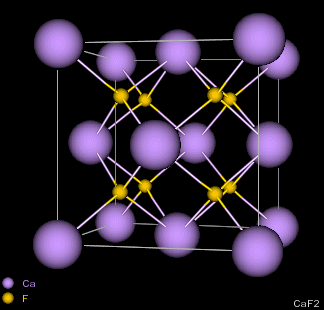

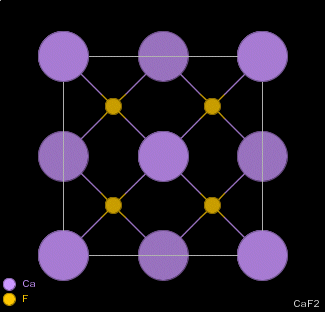

CaF2

Strukturbericht - C1



Ca F2
Calcium fluoride

Fm-3m (225) [cF12]
5.463 5.463 5.463 90 90 90
Ca at 0,0,0
F at 1/4,1/4,1/4

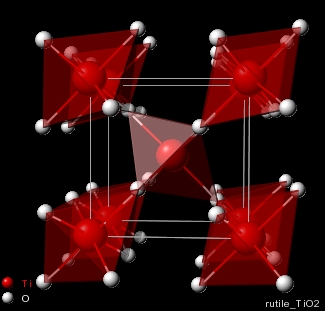

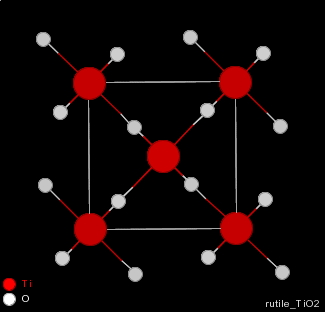

TiO2 - rutile

Strukturbericht - C4



TiO2
Rutile

P42/mnm (136) [PS tP6]
4.5737 4.5737 2.958 90 90 90
Ti at 0,0,0
O at 0.3053,0.3053,0

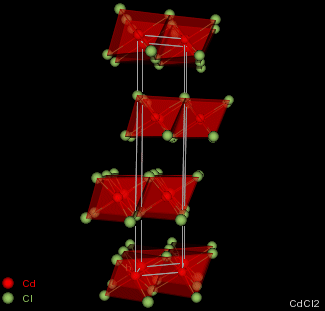

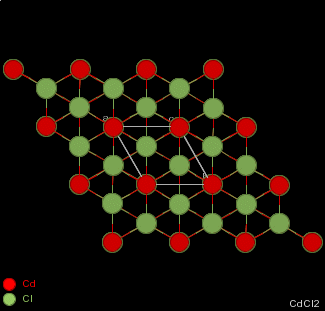

CdCl2

Strukturbericht - C19

Cd Cl2
Cadmium chloride

R32 (155) [hR3]
3.853 3.853 17.457 90 90 120
Cd at 0,0,0
Cl at 0,0,1/4

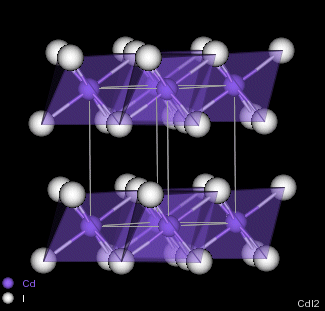

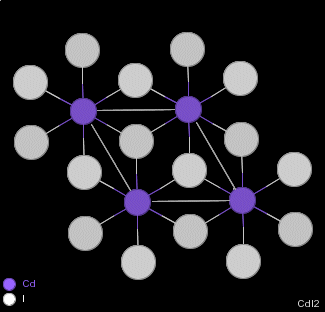

CdI2

Strukturbericht - C6

Cd I2
Cadmium iodide

P-3m1 (164) [hP5]
4.224 4.224 6.859 90 90 120
Cd at 0,0,0
I at 1/3,2/3,0.2492

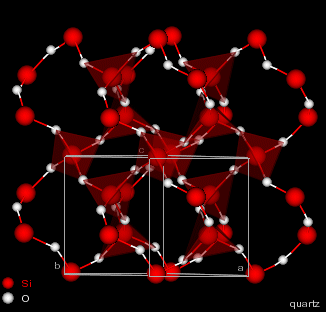

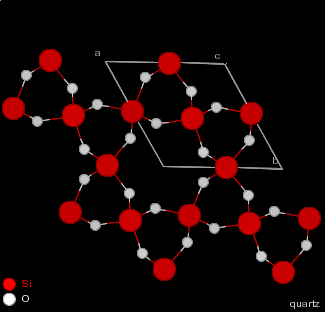

SiO2 - quartz

Strukturbericht - C8

Si O2
Quartz

P3221 (154) [hP9]
4.913 4.913 5.404 90 90 120
Si at 0.4697,0,2/3
O at 0.4125,0.2662,0.7855

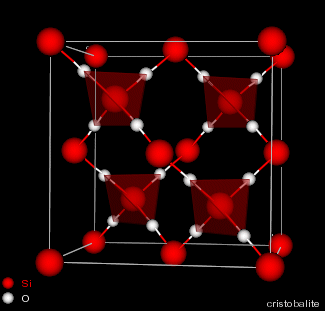

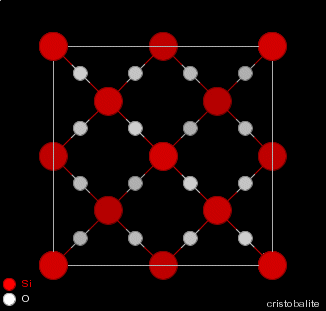

SiO2 - cristobalite

Strukturbericht - C9

Si O2
Cristobalite - high

Fd-3m (227) [cF24]
7.12 7.12 7.12 90 90 90
Si at 0,0,0
O at 1/8,1/8,1/8
SiO2 - tridymite

Strukturbericht - C10



Si O2
Tridymite

P63/mmc (194) [hP12]
5.03 5.03 8.22 90 90 120
Si at 1/3,2/3,0.4375
O1 at 1/3,2/3,1/4
O2 at 1/2,0,1/2

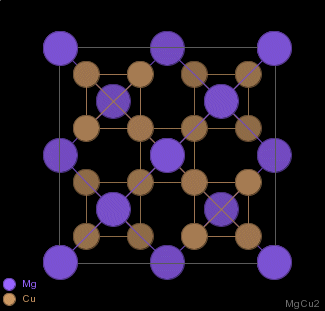

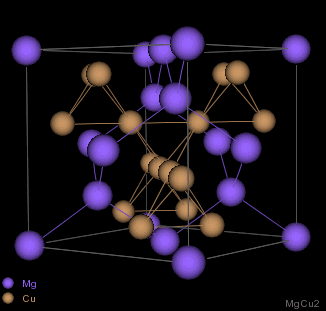

MgCu2

Strukturbericht - C15

Mg Cu2
Dicopper magnesium
Laves phase

Fd-3m (227) [cF24]
7.034 7.034 7.034 90 90 90
Mg at 1/8,1/8,1/8
Cu at 1/2,1/2,1/2

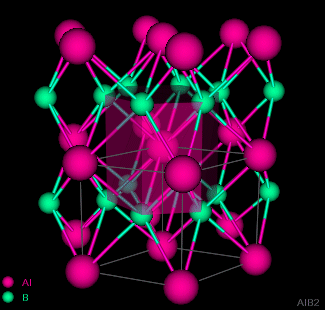

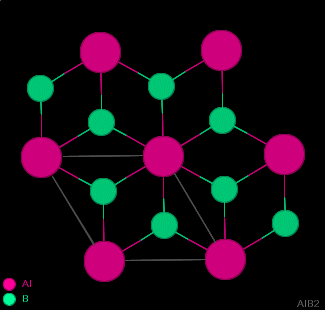

AlB2

Strukturbericht - ?

Al B2
Aluminum boride

P6/mmm (191) [hP3]
3.005 3.005 3.253 90 90 120
Al at 0,0,0
B at 1/3,2/3,1/2

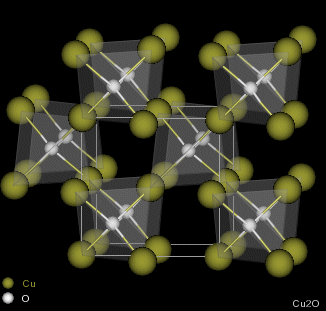

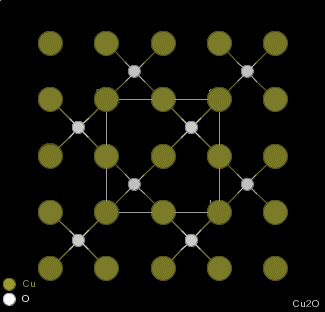

Cu2O

Strukturbericht - C3

Cu2 O
Cuprite

Pn-3 (201) [cP6]
4.27 4.27 4.27 90 90 90
CU at 1/4,1/4,1/4
O at 0,0,0

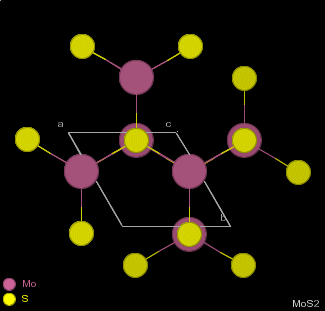

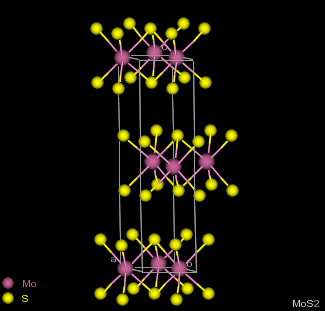

MoS2

Strukturbericht - C7

MoS2
Molybdenite

P63/mmc (194) [hP6]
3.15 3.15 12.3 90 90 120
Mo at 1/3,2/3,1/4
S at 1/3,2/3,0.8785

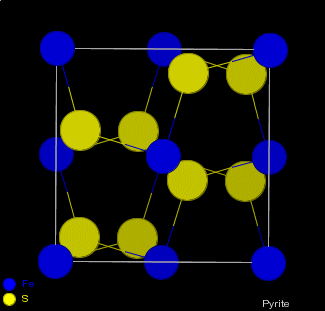

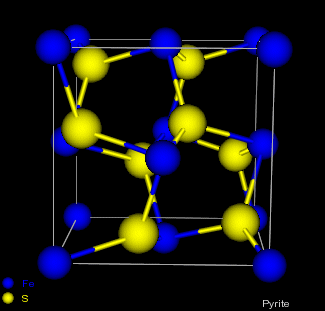

FeS2 - pyrite

Strukturbericht - C2

FeS2
Pyrite

Pa3 (205) [cP12]
5.407 5.407 5.407 90 90 90
Fe at 0,0,0
S at 0.386,0.386,0.386
3D view projection along [001] formula
name
space group, number, Pearson symbol
unit cell dimensions
atom positions for asymmetric unit
