VRML Structure Type gallery

created by © S.Weber, 2001

Inspired by the two websites on structure types  ( http://132.230.13.25/Vorlesung/Strukturtypen/alle.html and http://cst-www.nrl.navy.mil/lattice/index.html  ) I decided to create my own gallery of crystal structure types.  The  GIF and JPG images below are linked to VRML2.0 files. Clicking at them will open another window, where your VRML browser plug-in can display the structure. If your VRML browser does not display VRML2 files then you might have to use an external viewer, such as the very good program GLview. If you want to download the VRML files just click at the links using the right mouse button and choose "save link/target as..".

    elements  AB  AB2  AB3  others

1. Elements

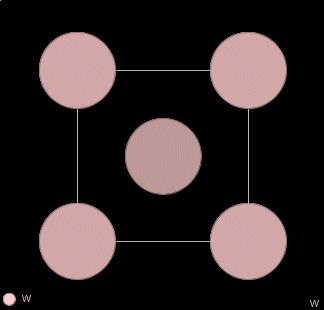

W - type (bcc)

Strukturbericht - A2



W
Wolfram

Im-3m (229) [cI2]
3.165 3.165 3.165 90 90 90
W at 0, 0, 0

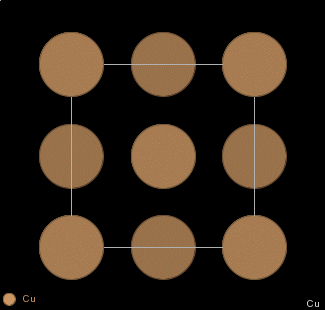

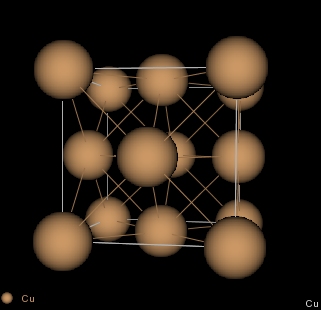

Cu - type (fcc)

Strukturbericht - A1



Cu
Copper

Fm-3m (225) [cF4]
3.615 3.615 3.615 90 90 90
Cu at 0,0,0

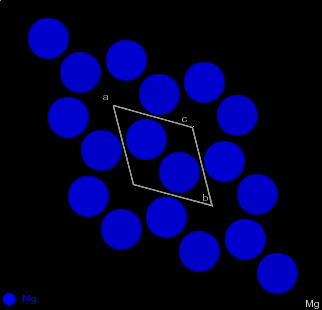

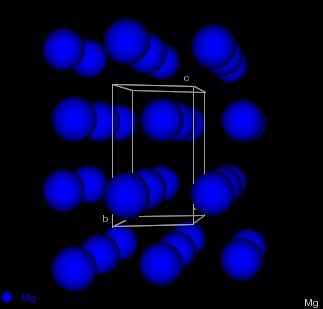

Mg - type (hcp)

Strukturbericht - A3

Mg
Magnesium

P63/mmc (194) [hP2]
3.21 3.21 5.21 90 90 120
Mg at 1/3,2/3,1/4

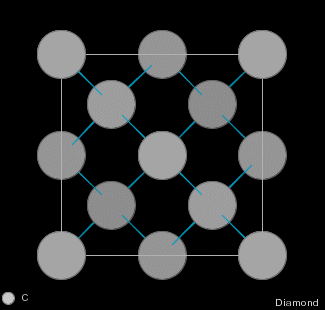

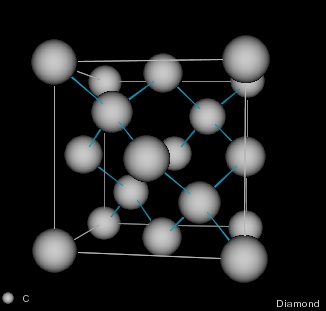

C - diamond

Strukturbericht - A4

C
Diamond

Fd-3m (227) [cF8]
3.567 3.567 3.567 90 90 90
C at 0,0,0

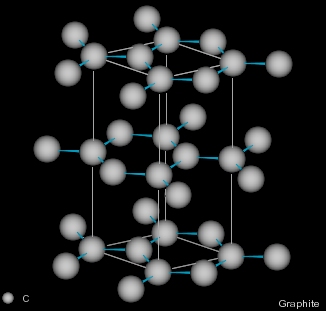

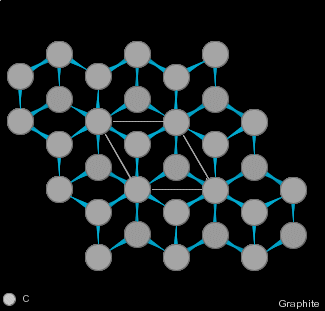

C - graphite

Strukturbericht - A9

C
Graphite-2H

P63mc (186) [hP4]
2.47 2.47 6.79 90 90 120
C1  at 0,0,0
C2  at 1/3,2/3,0

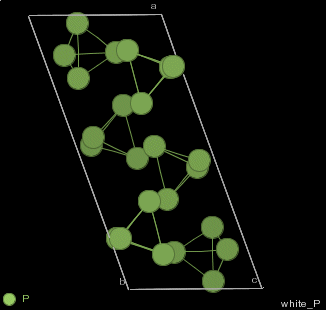

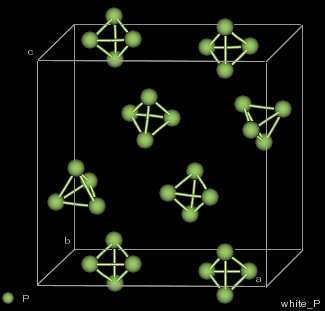

P (white)

Strukturbericht - ?

P4
Phosphorus - white

P-1 (2) [aP24]
11.45 5.503 11.261 71.84 90.37 71.56
P 1  at 0.67802,0.3937,0.00247
P 2  at 0.52922,0.8851,0.17722
P 3  at 0.18938,0.92202,0.05123
P 4  at 0.55505,0.84909,0.3736
P 5  at 0.02641,0.34671,0.3149
P 6  at 0.87186,0.35722,0.01126
P 7  at 0.67157,0.53535,0.30808
P 8  at 0.4775,0.58127,0.31956
P 9  at 0.13526,0.55621,0.37416
P 10 at 0.81346,0.05347,0.14518
P 11 at 0.14244,0.15713,0.49419
P 12 at 0.22608,0.20514,0.31893

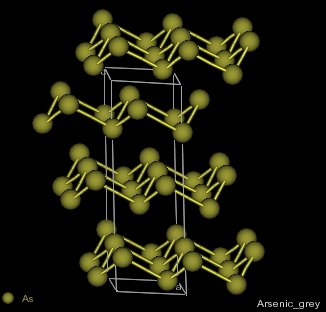

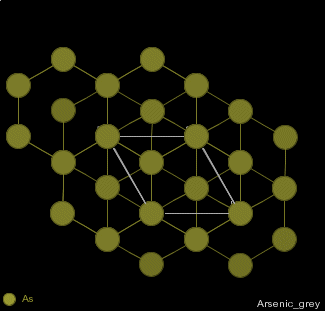

As (grey)

Strukturbericht - A7



As
Arsenic

R-3m (166) [hR2]
3.7618 3.7618 10.542 90 90 120
As at 0,0,0.226

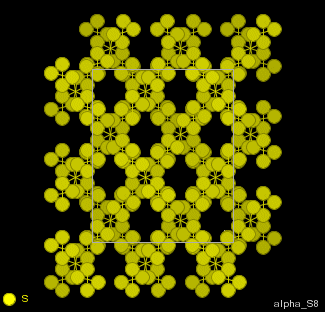

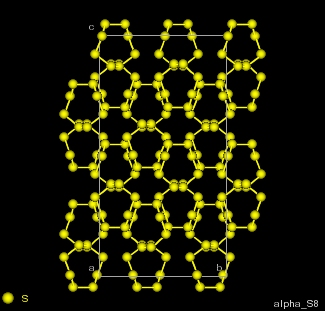

alpha - S8

Strukturbericht - A16

S8
Octasulfur - alpha

Fddd (70) [oF128]
10.437 12.845 24.369 90 90 90
S1 at 0.8561,0.9528,0.9515
S2 at 0.7848,0.0305,0.0763
S3 at 0.7073,0.98,0.0041
S4 at 0.7858,0.908,0.1296

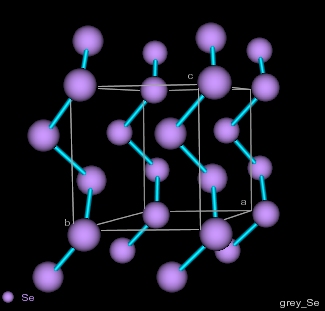

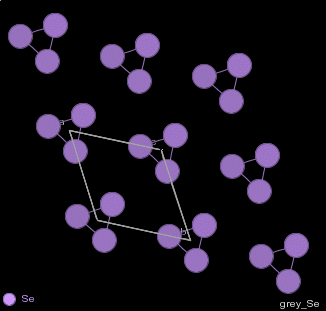

Se (grey)

Strukturbericht - A8

Se
Selenium - grey

P3121 (152) [hP3]
4.366 4.366 4.954 90 90 120
Se at 0.2254,0,1/3

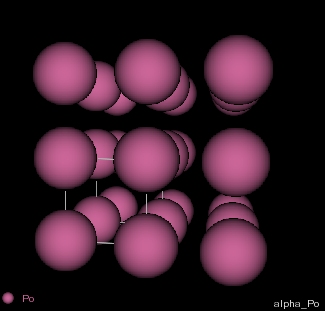

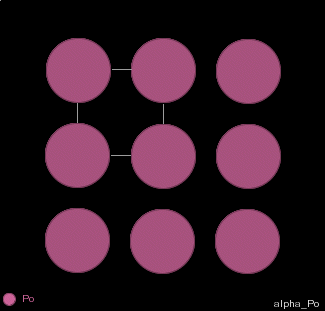

alpha - Po

Strukturbericht - ?

Po
Polonium

Pm-3m (221) [cP1]
3.35 3.35 3.35 90 90 90
Po at 0,0,0

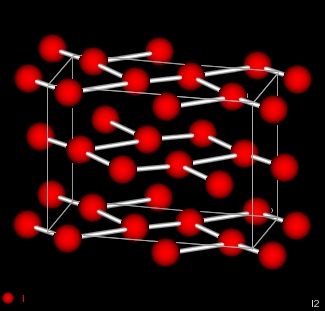

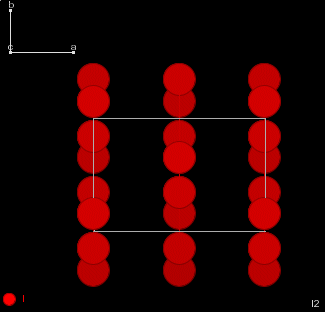

I2

Strukturbericht - A14

I2
Diiodine

Cmca (64) [oC8]
7.136 4.686 9.784 90 90 90
I at 0,0.15434,0.11741
3D view projection along [001] formula
name
space group, number, Pearson symbol
unit cell dimensions
atom positions for asymmetric unit
