VRML Structure Type gallery

created by © S.Weber, 2001

Inspired by the two websites on structure types  ( http://132.230.13.25/Vorlesung/Strukturtypen/alle.html and http://cst-www.nrl.navy.mil/lattice/index.html  ) I decided to create my own gallery of crystal structure types.  The  GIF and JPG images below are linked to VRML2.0 files. Clicking at them will open another window, where your VRML browser plug-in can display the structure. If your VRML browser does not display VRML2 files then you might have to use an external viewer, such as the very good program GLview. If you want to download the VRML files just click at the links using the right mouse button and choose "save link/target as..".

    elements  AB  AB2  AB3  others

4. AB3

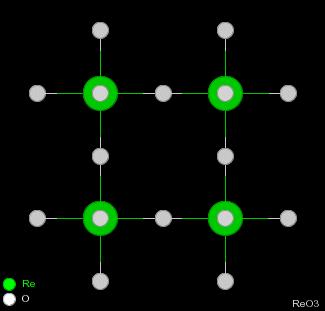

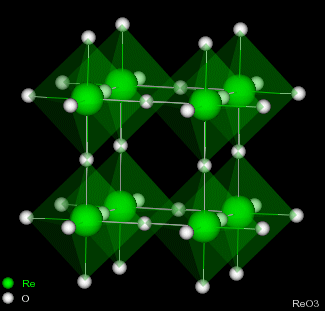

ReO3

Strukturbericht - DO9



Re O3
Rhenium oxide

Pm-3m (221) [cP4]
3.734 3.734 3.734 90 90 90
Re at 0,0,0
O at 1/2,0,0

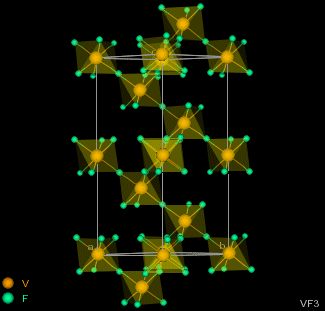

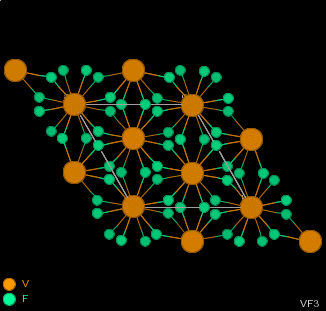

VF3

Strukturbericht - ?



V F3
Vanadium fluoride

R-3c (167) [hR8]
5.168 5.168 13.438 90 90 120
V at 0,0,0
F at 2/5,0,1/4

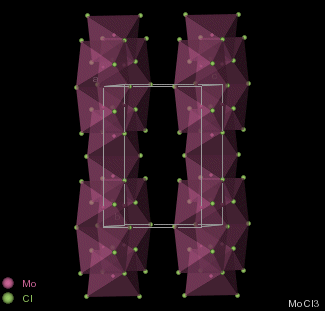

MoCl3

Strukturbericht - ?

Mo Cl3
Molybdenum chloride

C12/m1 (12) [mC16]
6.092 9.745 7.275 90 124.6 90
Mo at 0,0.1417,0
Cl1 at 0.502,0.17,0.223
Cl2 at 0.0080,0,0.274

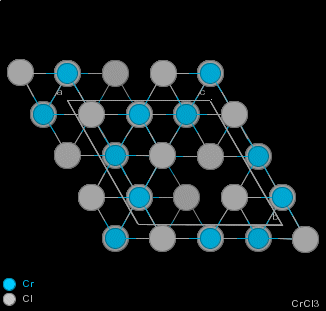

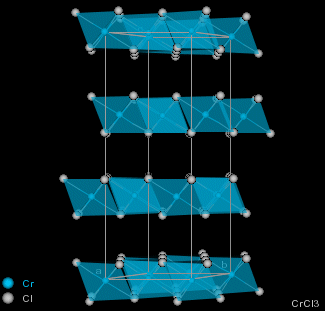

CrCl3

Strukturbericht - ?

Cr Cl3
Chromium chloride

P3212 (153) [hP24]
6.017 6.017 17.3 90 90 120
Cr1 at 2/9,1/9,0
Cr2 at 0.8889,0.4444,0
Cl1 at 0.8889,1/9,0.0731
Cl2 at 0.5556,0.4444,0.0731
Cl3 at 2/9,0.7778,0.0731

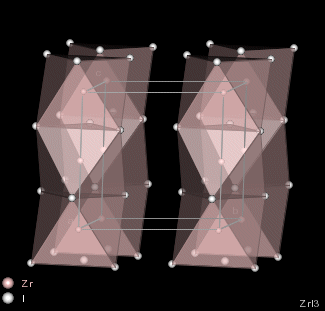

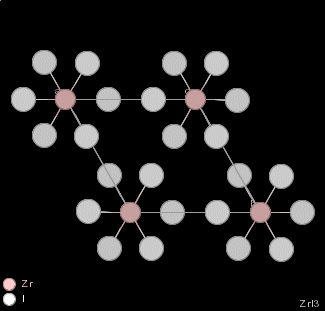

ZrI3

Strukturbericht - ?



Zr I3
Zirconium iodide

P63/mcm (193) [hP8]
7.25 7.25 6.64 90 90 120
Zr at 0,0,0
I at 0.325,0,1/4

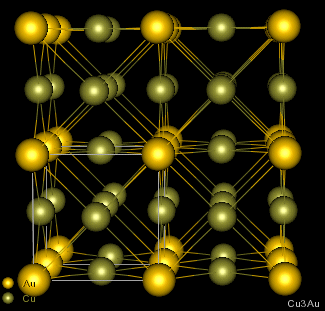

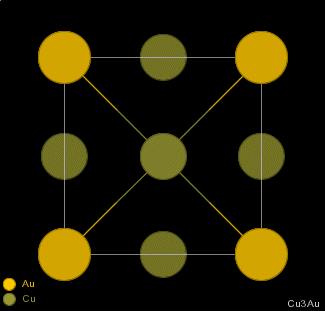

Cu3Au

Strukturbericht - L12

Au Cu3
superstructure

Pm-3m (221) [cP4]
3.748 3.748 3.748 90 90 90
Au at 0,0,0
Cu at 0,1/2,1/2

5. A2B3

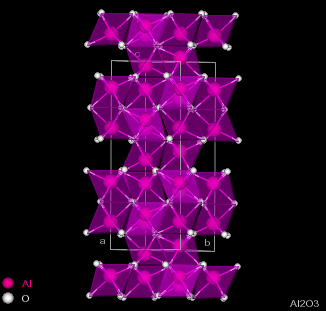

Al2O3 - corundum

Strukturbericht - D51

Al203
Corundum

R-3c (167) [hR10]
4.758 4.758 12.991 90 90 120
AL at 0,0,0.355
O at 0.303,0,1/4

6. A3B4

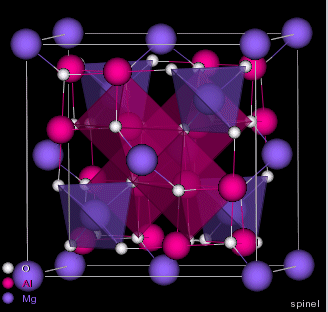

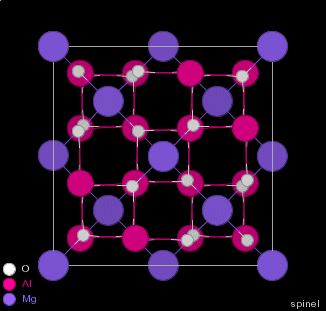

MgAl2O3 - spinel

Strukturbericht - H11

Mg Al2 O4
Spinel

Fd-3m (227) [cF56]
8.083 8.083 8.083 90 90 90
Mg at 0,0,0
Al at 5/8,5/8,5/8
O at 0.387,0.387,0.387
3D view projection along [001] formula
name
space group, number, Pearson symbol
unit cell dimensions
atom positions for asymmetric unit
